Product Details:
|
| Name: | Geotextile For Construction Road,Woven Geotextile Price,Hot Sale Polypropylene Woven Monofilament Geotextile Fabric,woven Monofilament Geotextile Fabric Membrane Price For Road | Material: | Polyester |
|---|---|---|---|
| Application: | Reinforcement,Building Construction,Weed Control,Filtration,Garden Used | Color: | White |
| Geotextile Type: | Woven Geotextiles | Width: | Accept Customer-made |
| High Light: | PP Woven Geotextile Fabric,CE Construction Projects Woven Geotextile Fabric,Reinforcement PET Woven Geo Fabric |
||

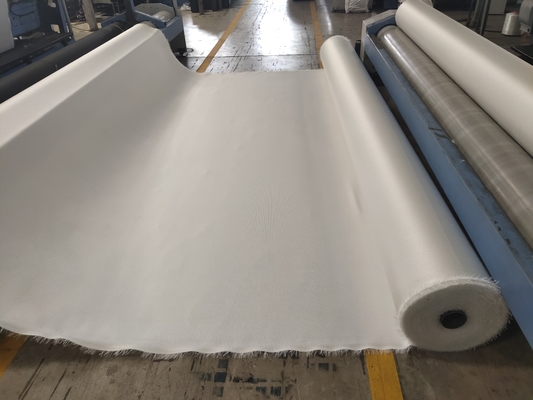

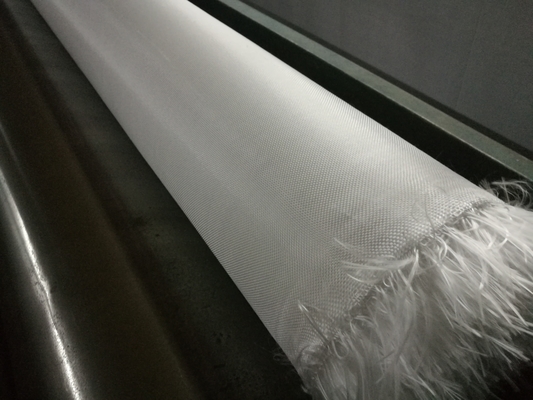

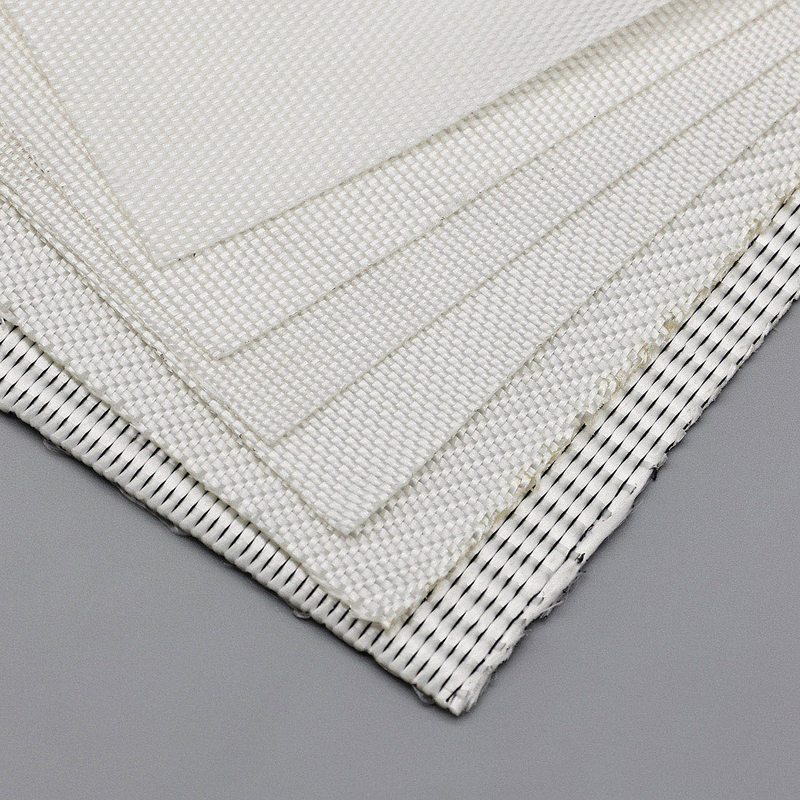

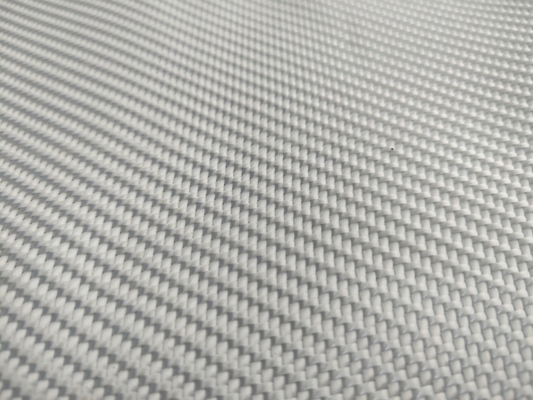

PET PP Woven Geotextile used in the construction projects
Product description:
PET/PP woven geotextile is made of h tenacity and high molecular weight polyester or polypropylene yarns, Wear-resisting, bursting resistant and high tensile strength, also provide different strength at low elongation.
PET/PP woven geotextile can be applied in soil stabilization embankment reinforced wall and slope, sidewalk paver, coastal and riverbank revetments, landfill separators and capping etc.
Specifications: Range:50kn~1000kn
| Item | Unit | 65x65 | 150x50 | 200x50 | 600x50 | 1000x50 | 200x200 | |
| Tensile strength | MD | KN/m | 65 | 150 | 200 | 600 | 1000 | 200 |
| CD | KN/m | 65 | 50 | 50 | 50 | 50 | 200 | |
| Elongation of break | MD | %≤ | 9 | 10 | 11 | 10.5 | 10.5 | 12 |
| CD | %≤ | 9 | 10 | 10 | 10 | 10 | 8 | |
| Bursting strength | KN/m | 3 | 9 | 10 | / | / | 20 | |
| Equivalent opening size(O95) | mm | 0.05-0.5 | ||||||
Product features: What is woven geotextile used for?
1. High strength: Use high-strength industrial polypropylene, polyester, nylon and other synthetic fibers as raw materials, which have high original strength. After weaving, it becomes a regular interwoven structure, and the comprehensive load-bearing capacity is further improved.
2. Durability: Synthetic chemical fiber is characterized by resistance to change, decomposition, and weathering. It can maintain its original characteristics for a long time.
3. It has convenient construction, small weight and convenient use.
4. Water permeability: Woven fabric can effectively control the pores of its structure to achieve a certain water permeability.
5. Convenient storage and transportation: Because it is light in weight and can be packaged according to certain requirements, transportation, storage, and construction are very convenient.
6. Application range: A series of industrial products of geotechnical materials formed to adapt to various characteristics and requirements of geotechnical engineering. Widely used in rivers, coasts, harbors, highways, railways, docks, etc.
7. Function and application of filament woven geotextile:
Woven geotextiles are mainly used in railway subgrade construction, highway subgrade construction, foundation use of various construction sites, dike retaining, intercepting sand and soil loss, tunnel waterproofing membrane use, urban green flower project use, underground garage waterproofing, waterproof material Substrates, artificial lakes, pools, seepage and waterproof use, clay liners, can also be used as concrete foundation cushions, especially when geological instability brings uneven settlements, woven geotextiles, woven needle-punched geotextiles It has a good water-conducting function and strong tensile strength. It can form a filtering and drainage effect inside the fill, so that the foundation soil is not lost, and the building structure is strengthened and the foundation is solid. The product has good dimensional stability, anti-aging, strong crack resistance, flexibility, and is not afraid of mold. It is a new material that is non-toxic, non-volatile, and environmentally friendly.
